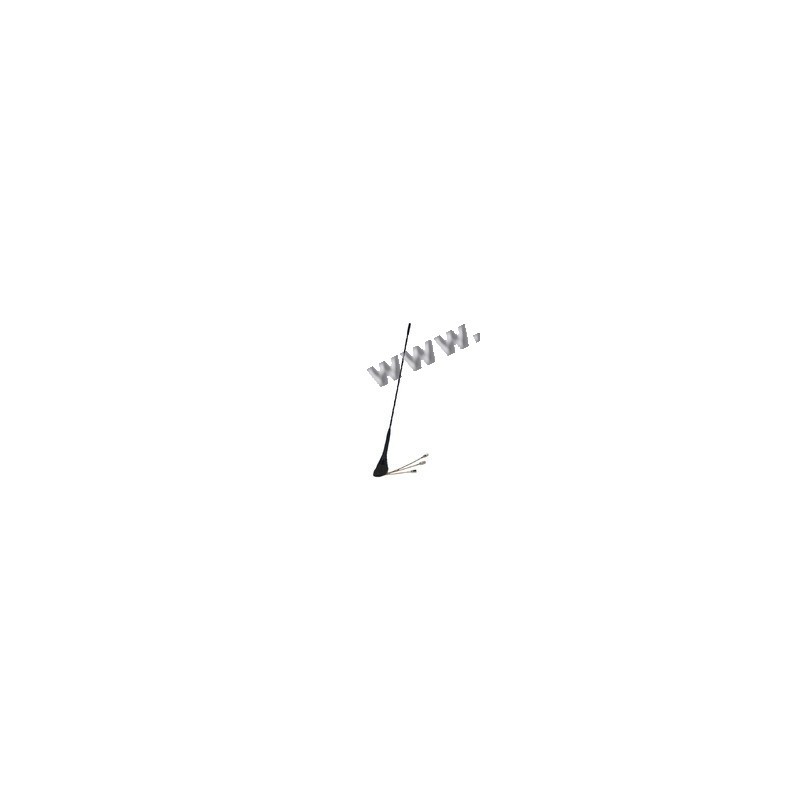

SIRIO - TRIFLEXCB/FM-900CABLES

Features:

• CB Mobile antenna, Multi-band
• CB frequency tunable by rotation of tuning cap
• Flexible whip, detachable for car-washes access
• For CB 27 MHz, AM-FM radio and GSM 900 MHz systems

  Part Numbers:
• P/N 2216215.00 TRIFLEX 27/FM/900
  Extension cable available:
• P/N 2511805.00 5m AM-FM
• P/N 2510605.00 5m GSM 900
• P/N 2513305.00 5m PL259 CB band

  Electrical Data:
• Type:
  CB 27 MHz band: 1/4 λ central loaded
  FM band: 1/4 λ helical loaded
  GSM 900 MHz band: 1/4 λ

  Frequency range:
• CB 27 MHz band: tunable 26.8 .. 27.6 MHz by rotation of tuning cap
  AM-FM band: AM 0.15-1.6 MHz, FM 87.5-108 MHz GSM 900 MHz band: TX-band 880-915 MHz, RX-band 935-960 MHz


• Bandwidth @ SWR ≤ 2:
  CB 27 MHz band: ≥ 440 KHz (40 channel)
  GSM 900 MHz band: ≥ 100 MHz

  Max. power:
• CB 27 MHz band: 10 Watts
• GSM 900 MHz band: 20 Watts

  Cable lenght / Type / Connector:
• CB 27 MHz band: 215 mm ( 0.71 ft ) / RG316 / FME-male
• FM band: 165 mm ( 0.54 ft ) / RG316 / M10x0.75-male
• GSM 900 MHz band: 120 mm ( 0.39 ft ) / RG316 / FME-male

  Mechanical Data:
• Materials: Nylon, Chromed Brass, Copper, Aluminum
• Height (approx.): 500 mm / 1.64 ft
• Weight (approx.): 120 gr / 0.26 lb
• Mounting hole: Ø 18 mm / Ø 0.71 in or square 15mm / 0.59in
• Mounting depth: 12 mm / 0.39 in
