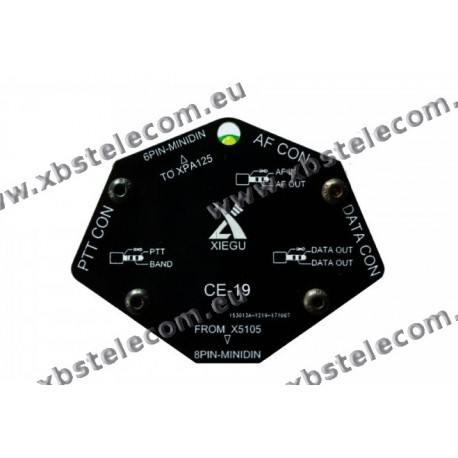

XIEGU - CE-19 - Expansion Port for X5105

The Xiegu CE-19 expansion port simplifies connection of a PC or other data terminals, modems etc for digital mode operation.

The expansion unit extends the MINI-DIN8 interface to commonly used 3.5mm stereo sockets.

The unit also extends the MINI-DIN6 interface for the XPA125 amplifier interface independently so you can connect both a PC and an linear amplifier simultaneously.

Any third party hardware that needs a PTT input can be connect  to the CE-19 PTT output. An onboard relay separates and amplifier to protect your X5105 transceiver.

A yellow LED indicates that the CE-19 is powered from the X5105 and a red LED lights up when PTT is active.

In the box

• 1 x CE-19 expansion port
• 1 x Mini-DIN cable to connect X5105 with CE-19
• 3 x 1 meter cable with stereo 3.5 connector/open end
• 3 x 3.5 mm teleplug (slim type to fit X5105).

Weight 0.2 kg
