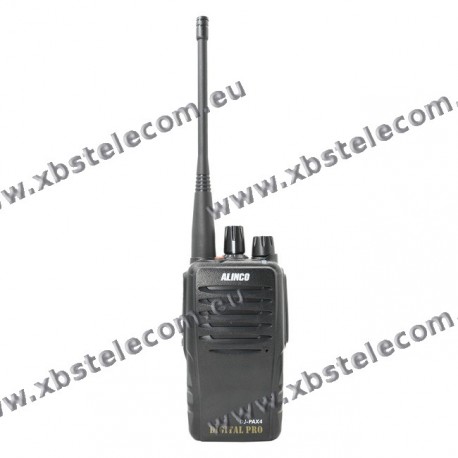

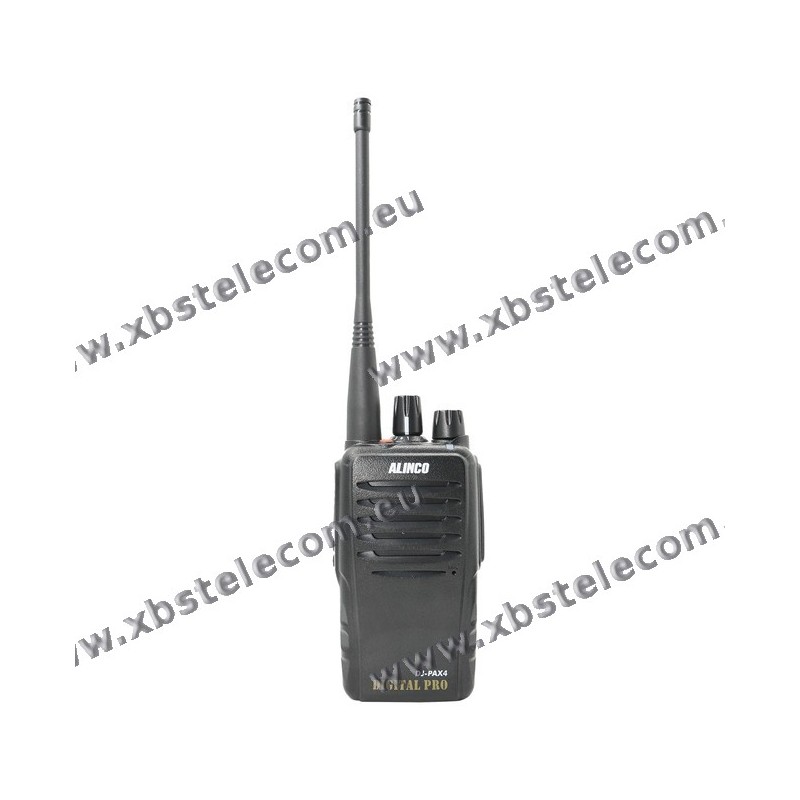

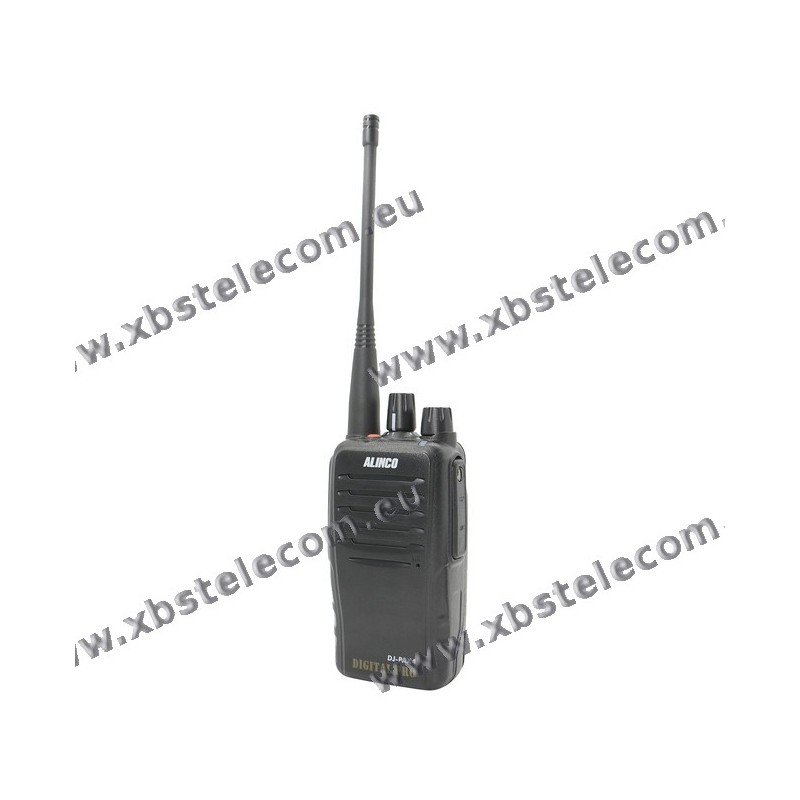

ALINCO - DJ-PAX-4 PMR-446 - Digital / Analog radio

Completely compatible with eg Kenwood TK-3401D & Kenwood TK-3601D in DIGITAL mode!
fully compatible with Kenwood TK-3301/3401/3501/3601 / PKT-23 and Maas PT device series in ANALOG mode
IP 67 housing (highest resistance to water & dust)
submersion in fresh water up to 1 meter depth maximum 30 minutes

FEATURES:

complete compatible e.g. with Kenwood TK-3401D & Kenwood TK-3601D in DIGITAL mode !!!
Completely compatible with Kenwood TK-3301/3401/3501/3601 / PKT-23 and Maas PT device series in ANALOG mode
via optional software of course also adaptable to PMR-446 radios from any other manufacturer
2-pin Kenwood connection socket for external audio accessories suitable for the use of Kenwood and Maas KEP..K audio accessories
IP 67 housing (highest resistance to water and dust)

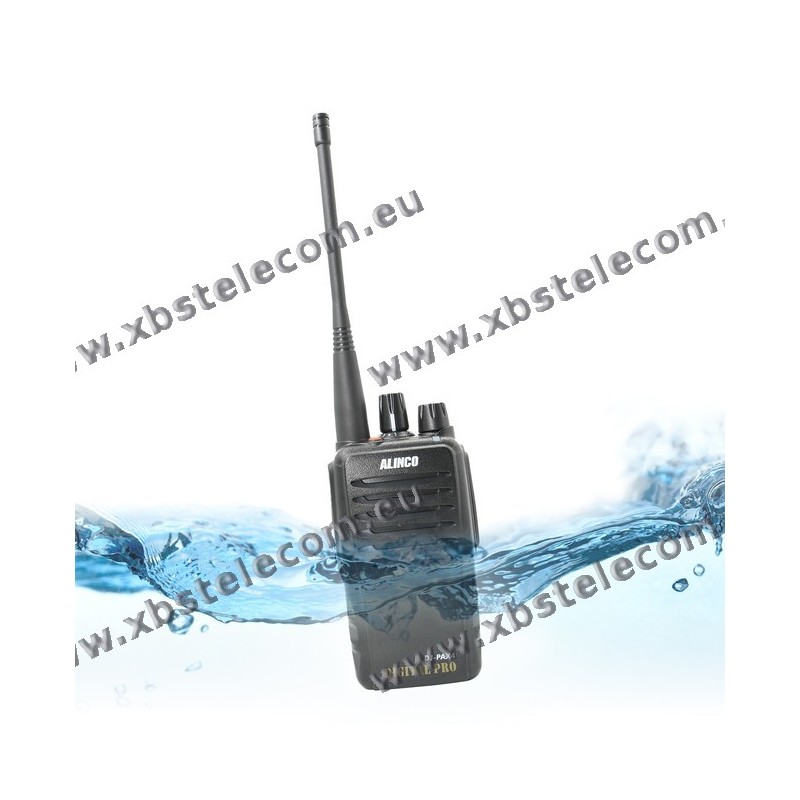

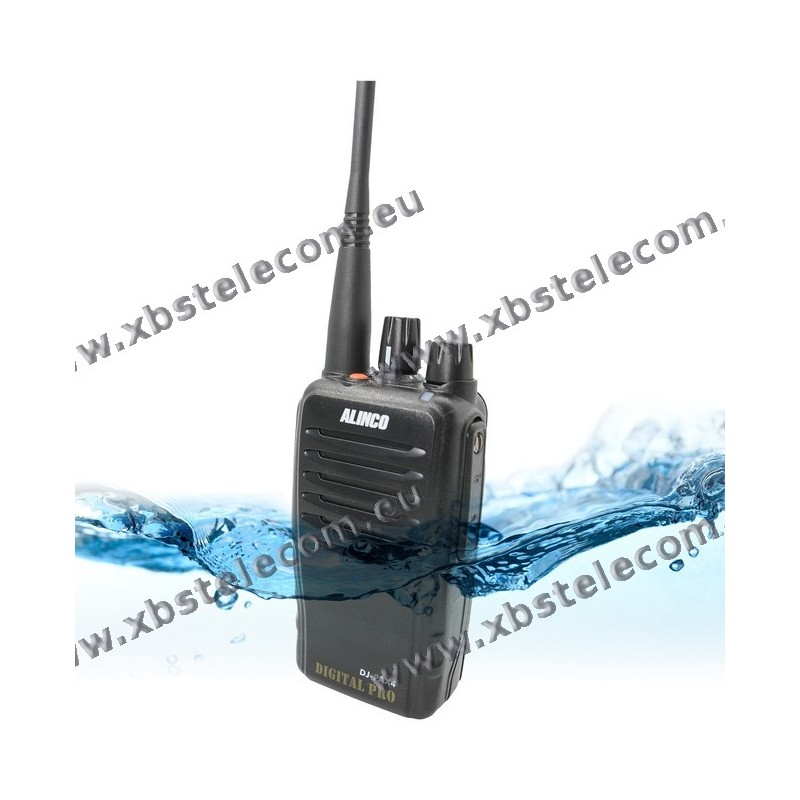

Immersion in fresh water up to 1 meter depth possible for a maximum of 30 minutes without damage (headset socket must closed)
MIL-810G housing (absolutely resistant to shock and vibration)
clear and loud playback through a 1 watt loudspeaker
AMBE + 2 (TM) vocoder
digital channels pre-programmed (all approved in Germany & Europe of course)
analog channels pre-programmed in
total 80 channels are available for free programming (within the PMR-446 frequency range)
The memory of the device is programmed in 5 zones with 16 channels each
CTCSS / DCS decoder in analog mode
easy operation
large speaker channel selection rotary control
monitor function (open the squelch at the push of a button)
Battery detect - battery protection circuit
channel / function announcement in English (with PC software can also be switched off)

The following features can only be programmed with optional software (Alinco ERW-22 programming cable required - can be purchased as an option):
3 programmable function keys with 2 functions each (long press, short press)
Work Alone
- Lone worker protection SOS Emergency - Emergency call button
VOX Handsfree automatic voice transmission
Scan - Channel search
Nuisance Channel Delete - occupied channel masking
Encrypt - voice encryption for increased protection against eavesdropping
Priority Scan - priority channel monitoring
Key Lock - keyboard lock

TECHNICAL DATA
Frequency range 446.00625 - 446.196875 MHz MHz
80 channels in total (72 channels pre-programmed & 8 additional channels free for individual programming)
Output line 500 mW
modulation analog (12.5 kHz): 8K50F3E
Modulation Digital (6.25 kHz): 4K00F1E
Operating voltage: 7.4V DC (supplied battery pack)
Dimensions with battery without antenna 102 x 59 x 38 mm
antenna length 140 mm
Weight with battery and antenna 238 grams

DELIVERY with:

Alinco DJ-PAX4 handheld radio
battery pack EBP-101 (Li-Ion / 7.4 Volt / 1800 mAh)

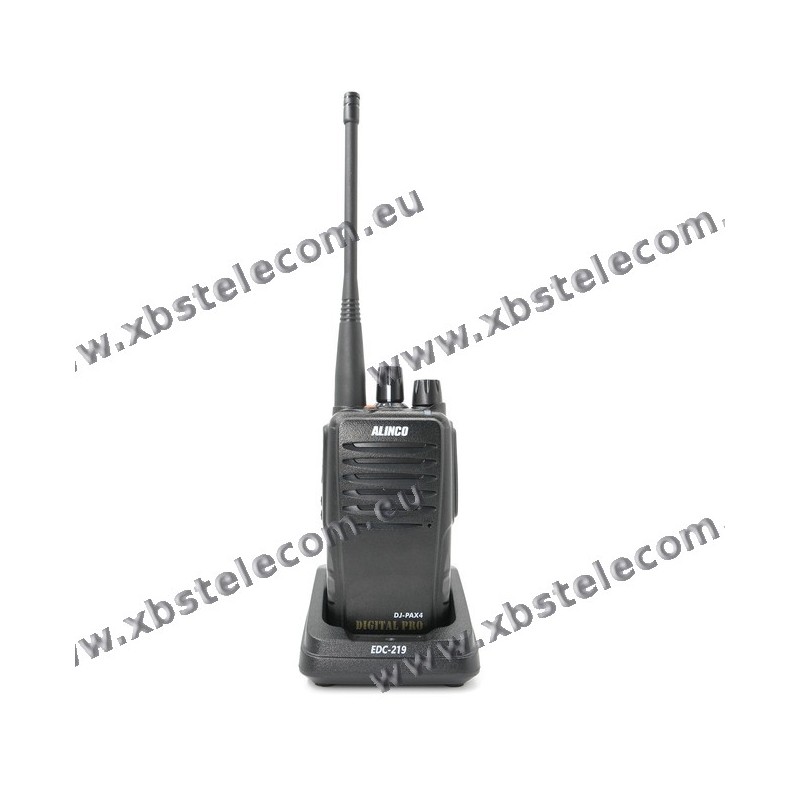

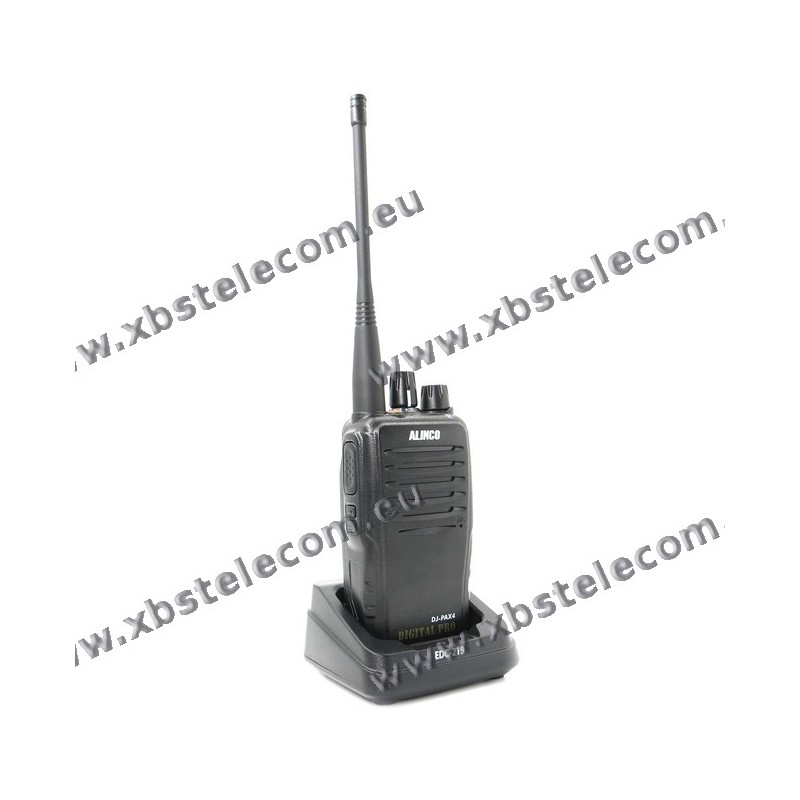

230 Volt desktop charger (stand charger) Antenna
Belt clip EBC-51 & carrying strap
Operating instructions

Weight: 0.238 kg
