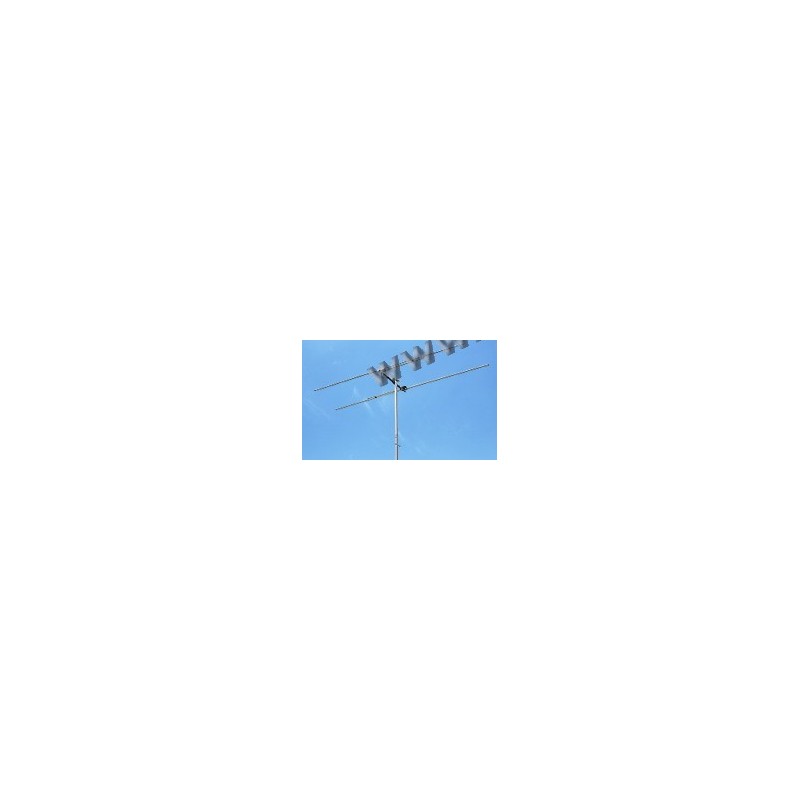

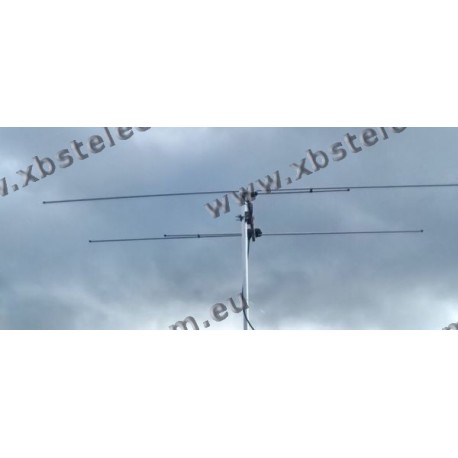

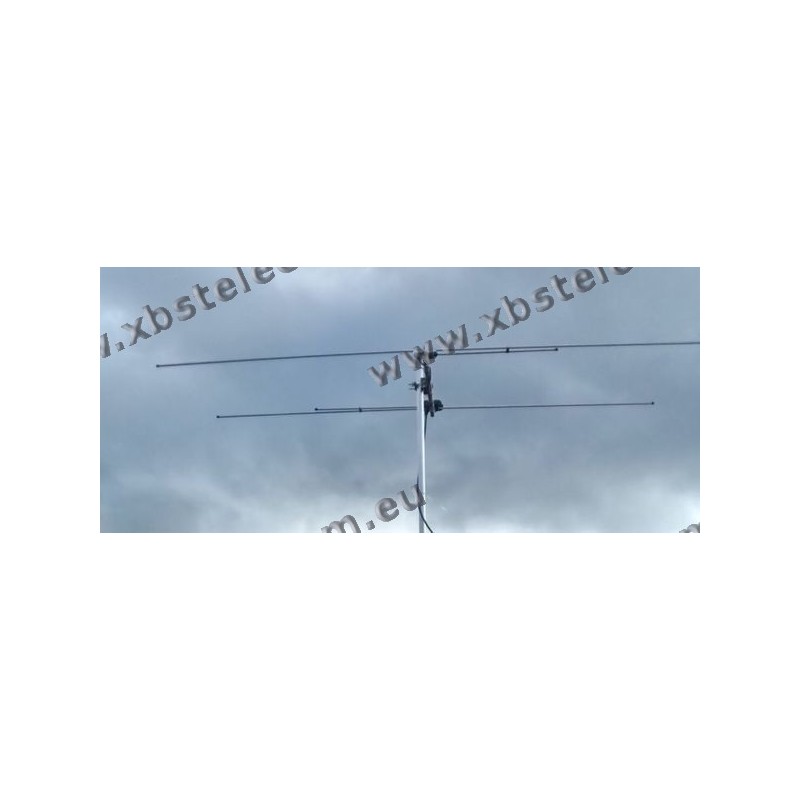

DIAMOND - A-502HBR2 - 50MHz(6m) - 2-ELEMENTS PHASED DRIVE BEAM ANTENNA - Type HB9CV

Reference: A-502HBR2

Condition: New product

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of 1,00 €.

Your current price:
115,00 €

More info

Frequency:50 to 53MHz (Center frequency without adjustment is set to 51MHz)
Gain:6.3dBi

Max.power rating:400W(SSB)
Impedance:50ohms

VSWR:Less than 1.5:1(50 to 52MHz without adjustment)
FB ratio:More than 15dB

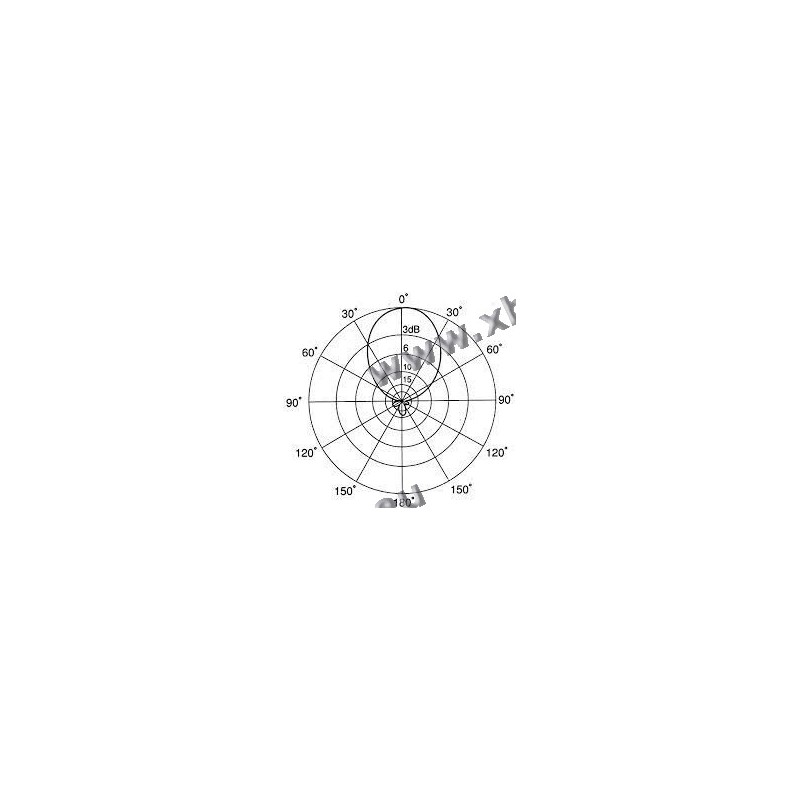

Half power band width:Less than 70degrees

Wind surface area:0.14m2
Rated wind velocity:40m/sec.
Turning radius:approx.1600mm

Connector:: SO239 (PL)
Mast diameter accepted:25mm to 56mm

Dimensions:800mm X 3000mm X 85mm
Weight:1.7kg
